3D bevel automatic plasma head

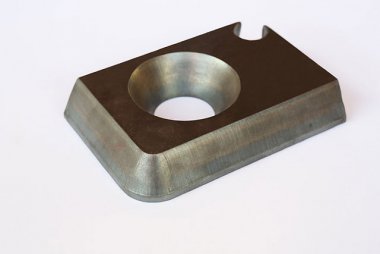

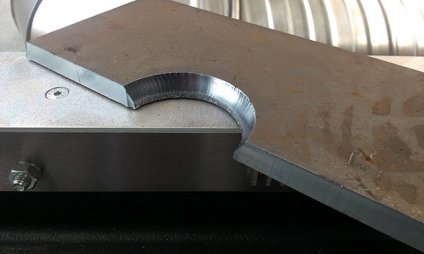

Up to half of the world production of cut parts is bevelled, especially for the subsequent welding.

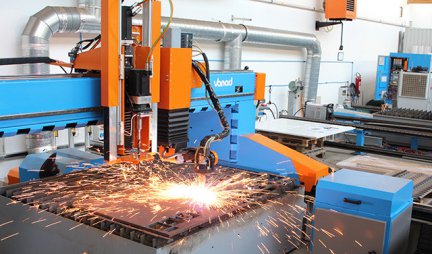

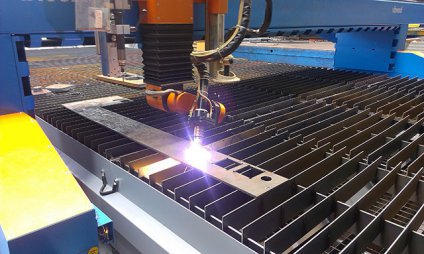

Thanks to the possible use of robotic databanks and transformations, Vanad 3D plasma head allows for the fully automatic angle settings, kerf correction, recalculation of plasma arc and height control and thereby it significantly expands the possibilities of using cutting machines and increases their power output. The construction of the head uses two harmonic gearboxes for rotational axis, which excel in high precision, rigidity, carrying capacity and compact dimensions. The used top quality components ensure the accuracy and the required dynamics of the head movement.
